Firmware Update

SparkPNT releases new firmware to improve or fix the functions and subsystems of the SparkPNT FPX. These firmware releases will update either the device's primary controller; or the subsystems for the GNSS receiver and LoRa radio. The firmware versions are displayed in the configuration header.

Configuration page with system version numbers

info

Users can check out the SparkFun_RTK_Everywhere_Firmware GitHub repository for the firmware releases and changes. Additionally, the firmware files from each release is archived in the SparkFun_RTK_Everywhere_Firmware_Binaries GitHub repository.

Updating ESP32 Firmware

The ESP32 runs off our open-source RTK Everywhere firmware, which is used in all of our GNSS RTK devices. The version of this firmware, is listed in a variety of places:

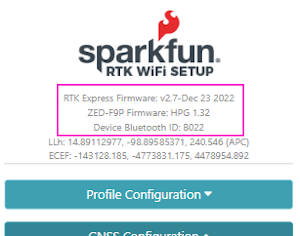

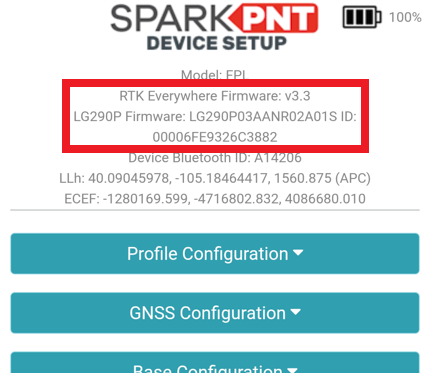

Header of the WiFi Config page listing the firmware version

Firmware version listed in the System Configuration menu of the Web Config page

Most of our firmware releases will update functions or add new features. To check for the most current versions, follow the Check for New Firmware section of the Configuration Settings guide. Most users will upgrade the firmware through the web configuration interface.

• OTA Method: Connects to a WiFi network to download the latest firmware from the internet. This can be done using the WiFi AP Config Mode, but also requires a local WiFi network with an internet connection.
• WiFi Method: Uploads the firmware directly from a mobile device, using the WiFi AP Config Mode.
• Reprogram the ESP32: Reprograms the ESP32, using the FPX's USB interface. This method is primarliy used for a device failure, when the firmware needs to be restored with the default settings.

Over-The-Air

With the Over-The-Air (OTA) method, the FPX will use the local WiFi network to check the internet for new firmware. If new version is available, it will automatically download the firmware file from the internet and update itself. Users can also enable this process to run automatically, to keep their device(s) updated.

1. Connect to the FPX with the web configuration interface
2. Make sure that a WiFi network has been configured in the settings
3. Navigate to the System Configuration setting, where the firmware can be updated

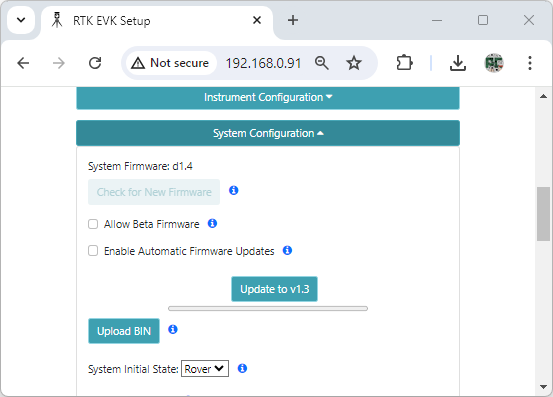

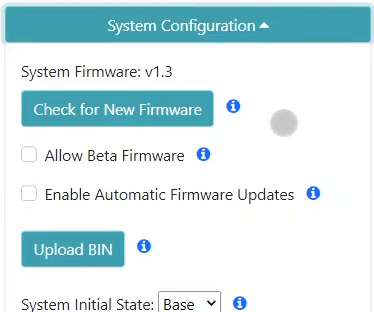

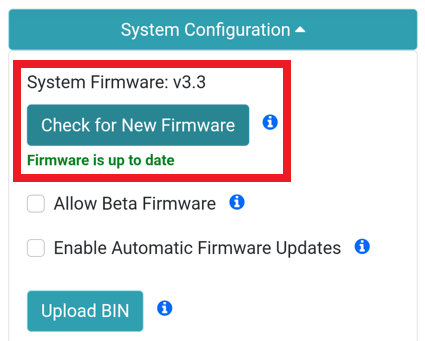

   Updating the firmware via WiFi config page

   1. Click on the Check for New Firmware button. The FPX will connect to the internet, through the configured WiFi network. Then it will check for the latest firmware releases, excluding the release candidates.
   2. If a new firmware version is available, an Update to version number button will appear.
   3. Click the button to begin the OTA update process. The FPX will download the latest firmware binary and update the firmware to the ESP32.

Automatic Updates

To enable automatic updates, select the Enable Automatic Firmware Updates option. Then click the Save Configuration button at the bottom of the webpage, to save this configuration change.

note

Automatic firmware updates are supported over WiFi, which makes checking and upgrading a unit simple. The polling period is specified in minutes and defaults to once a day.

note

The OTA update method only checks for and installs the latest firmware release; it cannot be used to restore a firmware release or revert to an older firmware release.

Upload from WiFi

The upload from WiFi method, is for users who already have the firmware binary file downloaded on their computer or mobile device. Then, using the WiFi connection to access the FPX configuration menu, they will upload the firmware file from their computer or mobile device.

1. Connect to the FPX with the web configuration interface
2. Navigate to the System Configuration setting, where the firmware can be updated

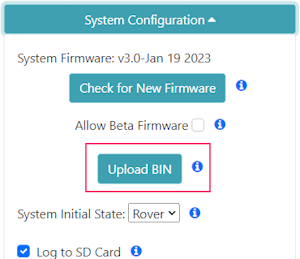

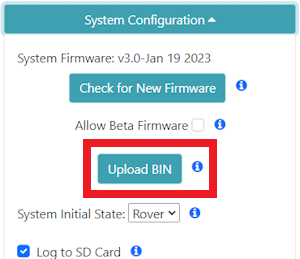

   1. The firmware is uploaded to the unit by clicking on Upload BIN button.
   2. In the dialog box, locate and select the firmware binary file (i.e. RTK_Surveyor_Firmware_vx_x.bin) from your device.
   3. Click the Ok button to begin the upload sequence. This will transfer the firmware file from the computer or mobile device to the FPX, through the WiFi connection, where the FPX will automatically update the firmware itself.
3. The unit will automatically reset once the firmware upload is complete.

Reprogram the ESP32

This method is a more involved process, but it can be used in emergencies to restore the firmware when the FPX is bricked, frozen, or unresponsive. The firmware will be uploaded directly to the ESP32 through its serial interface; effectively, reprogramming the module. There are a variety of ways to perform this; however, our RTK Firmware Uploader tool is the simplest.

Reprogramming the ESP32 with the RTK Firmware Uploader

1. Connect the SparkPNT FPX to a computer with a USB cable.



   Users can access the USB-C port under the rubber cover on the bottom of the FPX

   When connecting to the USB interface of the SparkPNT FPX to a computer, the device should automatically be detected as two COM ports. If the ports are not detected then users will need to install a USB driver to access the data or configure any settings.

   USB Driver

   The USB drivers for the CH342 USB-to-Serial converter can be downloaded below:

   • Windows: Download the CH343SER.EXE
   • MacOS: Download the CH341SER_MAC.ZIP
   • Linux: A USB driver is not required for most Linux based operating systems
2. Install the RTK Firmware Uploader tool. The program can be downloaded from the release page, with additional instructions provided in the README.md file.
3. Download the firmware's binary file. All of our firmware releases can be downloaded from the SparkFun_RTK_Everywhere_Firmware_Binaries GitHub repository.
4. Open the program and connect to the FPX. Select Channel B of the CH342, in the COM Port menu.



   Selecting the serial port for the ESP32

   tip

   The baud rate can be left at the default setting.

5. Click on the Browse button to select the firmware binary file you'd like to install.
6. Click the Upload Firmware button to reprogram the ESP32

info

To restore the firmware to the factory default settings, select the Erase Flash option from the Extras drop-down menu. This will completely erase the flash memory, including the LittleFS file system.

Selecting the Erase Flash option

Updating the Subsystems

Before users can update the GNSS receiver or LoRa module of the FPX, users will need to reconfigure the UART connection to those subsystems. This can only be changed with the SparkPNT FPX's serial interface's configuration menu.

note

The mosaic-X5 GNSS receiver doesn't require the UART connection; users can upload the firmware directly through its web server, using the USB interface.

Update Mode Configuration

To reconfigure the UART connection for the GNSS receiver or LoRa module, users will need to access the serial interface of the SparkPNT FPX with a terminal emulator.

1. Connect the SparkPNT FPX to a computer with a USB cable.



   Users can access the USB-C port under the rubber cover on the bottom of the FPX

   When connecting to the USB interface of the SparkPNT FPX to a computer, the device should automatically be detected as two COM ports. If the ports are not detected then users will need to install a USB driver to access the data or configure any settings.

   USB Driver

   The USB drivers for the CH342 USB-to-Serial converter can be downloaded below:

   • Windows: Download the CH343SER.EXE
   • MacOS: Download the CH341SER_MAC.ZIP
   • Linux: A USB driver is not required for most Linux based operating systems
2. Install your preferred terminal emulator.
3. Connect to the FPX with your preferred terminal emulator. Select Channel B of the CH342 and use a baud rate of 115200bps. When connected properly, users should see the unit's status messages.
   Example - Status Messages

   Messages - Device Status

   STATE_ROVER_NOT_STARTED --> STATE_ROVER_CONFIG_WAIT
   Batt (89%): Voltage: 8.05V Discharging: 7.53%/hr
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Rover configured
   STATE_ROVER_CONFIG_WAIT --> STATE_ROVER_NO_FIX
   LoRa radio configured for receiving
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Batt (89%): Voltage: 8.05V Discharging: 7.37%/hr
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Batt (89%): Voltage: 8.05V Discharging: 7.27%/hr
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix

4. Access the serial configuration's Main menu by sending any character through the terminal emulator. The screen of the FPX, should display Serial Config.



   Serial Config displayed on the screen of the FPX

   tip

   If the GNSS output is enabled, users need to send the +++ character combination to enter the Serial Configuration menu.

5. From the Main menu, send the s character to select the Configure System option and enter the System Configuration menu.
   Example - Main Menu Options

   Menu: Main

   1) Configure GNSS Receiver
   2) Configure GNSS Messages
   3) Configure Base
   4) Configure Ports
   5) Configure Logging
   6) Configure WiFi
   7) Configure TCP/UDP
   f) Firmware Update
   i) Configure Corrections Priorities
   p) Configure PointPerfect
   r) Configure Radios
   s) Configure System
   u) Configure User Profiles
   +) Enter Command line mode
   x) Exit

6. From the System Configuration menu, send the h character to select the Debug hardware option and enter the Hardware Debug menu.
   Example - System Configuration Menu Options

   Menu: System

   -----  Mode Switch  -----
   Mode: Rover
   A) Switch to Base mode using Base Assist
   B) Switch to Base mode
   C) Switch to Base Caster mode
   R) Switch to Rover mode
   W) Switch to Web Config mode
   S) Shut down
   -----  Settings  -----
   a) Automatic device reboot in minutes: Disabled
   b) Set Bluetooth Mode: Dual
   c) Shutdown if not charging: Disabled
   d) Debug software
   e) Echo User Input: On
   g) Enable Beeper: Enabled
   h) Debug hardware
   l) Debug LFS and SD card files
   n) Debug network
   o) Configure operation
   p) Configure periodic print messages
   r) Reset all settings to default
   u) Printed measurement units: meters
   z) Set time zone offset: 00:00:00
   ~) Setup button: Enabled
   x) Exit

7. Send the characters for the associated subsystem options:
   • LoRa Radio
     • Send 17 to select the STM32 direct connect for LoRa firmware upgrade option and enter the LoRa update mode.
     • This will switch Channel B of the CH342 to the UART interface to the STM32 LoRa module.
   • GNSS Receiver
     • Send 13 to select the GNSS direct connect for firmware update option and enter the GNSS update mode.
     • This will switch Channel A of the CH342 to the UART1 port of the GNSS Flex module, the primary UART interface for the GNSS receiver.
     warning

     This is not required for the mosaic-X5. The firmware can be uploaded through its web server on the USB interface.

   Example - Hardware Debug Menu Options

   Menu: Hardware Debug

   1) Print battery status messages: Enabled
   3) Print RTC resyncs: Disabled
   4) Print log file messages: Disabled
   5) Print log file status: Enabled
   7) Print SD and UART buffer sizes: Disabled
   9) Print GNSS Debugging: Disabled
   10) Print Correction Debugging: Disabled
   11) Print Tilt/IMU Debugging: Disabled
   12) Print Tilt/IMU Compensation Debugging: Disabled
   13) GNSS direct connect for firmware update
   14) PSRAM (online): Enabled
   15) Print ESP-NOW Debugging: Disabled
   16) Print LoRa Debugging: Disabled
   17) STM32 direct connect for LoRa firmware upgrade
   18) Display littleFS stats
   19) Print CLI Debugging: Disabled
   20) Delay between CLI LIST prints over BLE: 50ms
   21) Double-Tap Interval: 250ms
   22) Print GNSS Config Debugging: Disabled
   23) Reset GNSS Config
   24) EA Protocol name: com.sparkfun.rtk
   25) RTCM buffer debugging: Disabled
   26) STM32 direct connect for LoRa RX testing
   27) STM32 dedicated LoRa TX testing
   e) Erase LittleFS
   r) Force system reset
   x) Exit

8. The FPX will restart and enter the update mode for the chosen subsystem. Proceed to the instructions, in the following sections, to update the firmware for the associated subsystem.
   Example - LoRa Update Mode

   Response Messages - LoRa Passthrough

   STM32 passthrough mode has been recorded to LittleFS. Device will now reset.
   ets Jul 29 2019 12:21:46

   Before restarting, users should see the message above confirming the selected option.



   LoRa update message on the screen of the FPX

   Once the FPX restarts, the display will show the message above and provide the following instructions in the terminal:

   Response Messages - Update Instructions

   Entering STM32 direct connect for firmware update
   Disconnect this terminal connection

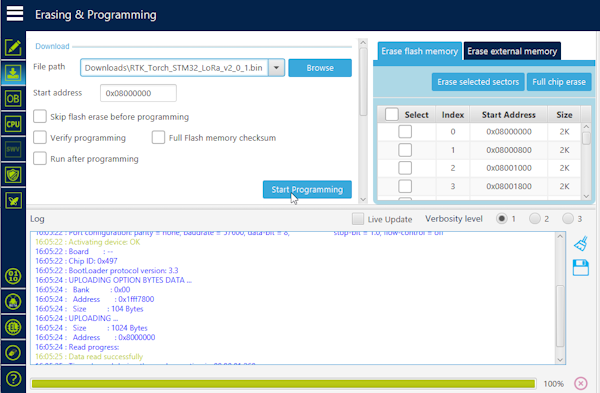

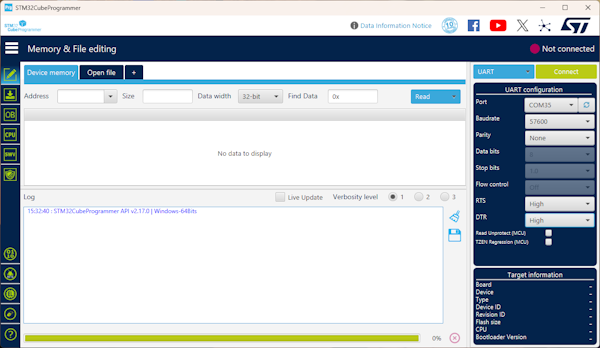

   Use 'STM32CubeProgrammer' to update the firmware:

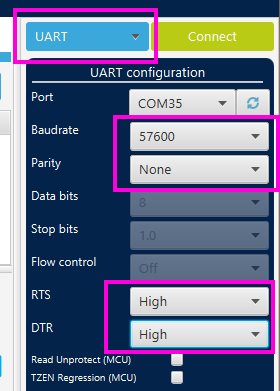

   Baudrate: 57600bps. Parity: None. RTS/DTR: High
   Press the power button to return to normal operation

   Example - GNSS Update Mode

   Response Messages - GNSS Passthrough

   GNSS passthrough mode has been recorded to LittleFS. Device will now reset.
   ets Jul 29 2019 12:21:46

   Before restarting, users should see the message above confirming the selected option.



   GNSS update message displayed on the screen of the FPX

   Once the FPX restarts, the display will show the message above and provide the following instructions in the terminal:

   Response Messages - Update Instructions for LG290P

   Entering GNSS direct connect for firmware update and configuration
   Use the GNSS manufacturer software to update the firmware via CH342 Channel A
   With QGNSS:
   Open Tools / Firmware Update
   Select the .pkg firmware file
   On the top tool bar, click "Reboot" (blue circle-back icon)
   Then click the green arrow to start the Firmware Update
   Hit R to reset the GNSS manually if needed - after starting the Update
   Initial baudrate: 460800bps
   Press the power button or hit any key (except R) to return to normal operation

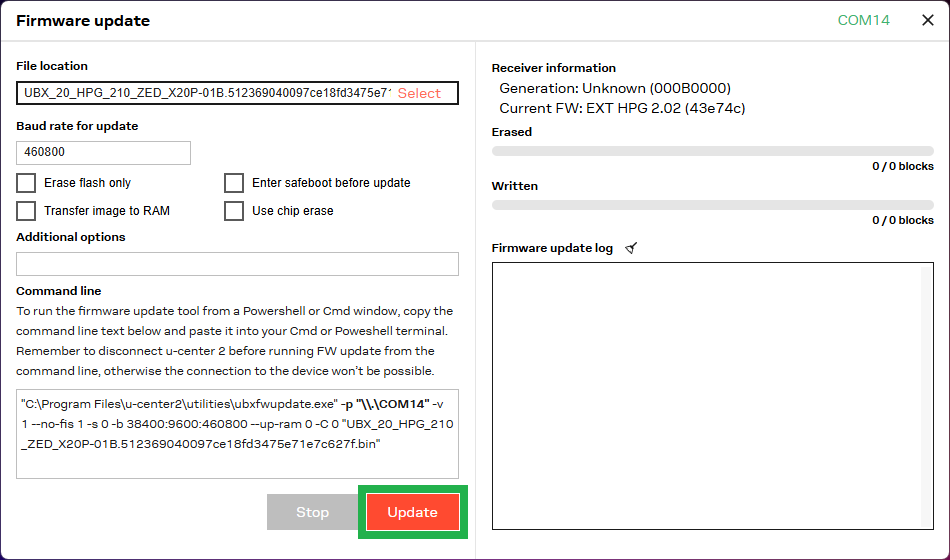

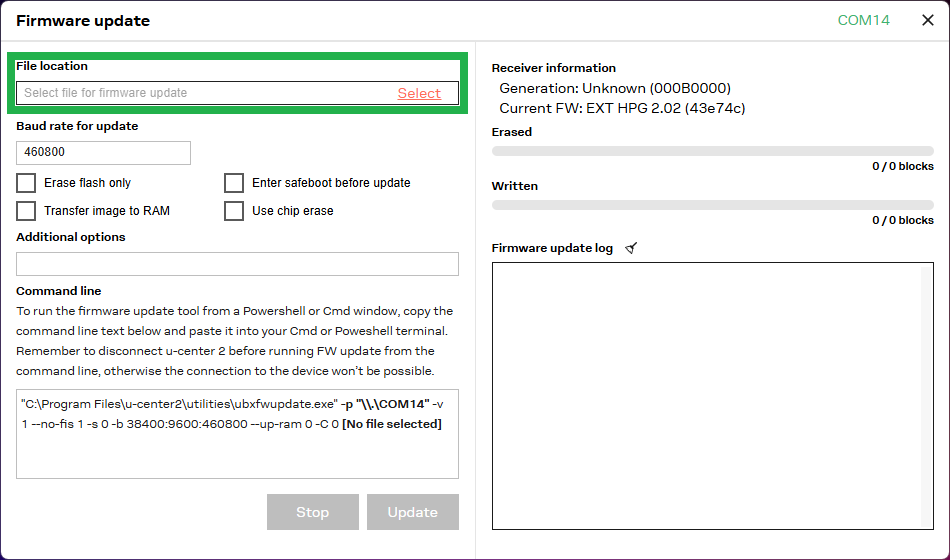

   Response Messages - Update Instructions for ZED-X20P

   Entering GNSS direct connect for firmware update and configuration
   Use the GNSS manufacturer software to update the firmware via CH342 Channel A
   Hit R to reset the GNSS manually if needed
   Initial baudrate: 230400bps
   Press the power button or hit any key (except R) to return to normal operation

   Response Messages - Disconnect

   Exiting GNSS direct connect
   Restarting...

   warning

   Please, keep this terminal open for the GNSS update proccess. It will be required to restart the GNSS receiver.

9. Press the () power button to exit from the update mode and restart the FPX .
   Example - Startup Messages

   Messages - Startup Sequence

   Jul 29 2019 12:21:46

   rst:0xc (SW_CPU_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT)
   configsip: 153911750, SPIWP:0xee
   clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
   mode:DIO, clock div:1
   load:0x3fff0030,len:4832
   load:0x40078000,len:16460
   load:0x40080400,len:4
   load:0x40080404,len:3504
   entry 0x400805cc
   E (1219) esp_cor��fVW
   					}���͡� No core dump partition found!
   E (1219) esp_core_dump_flash: No core dump partition found!


   28:56:2F:AC:9E:DC - wifiMACAddress
   28:56:2F:AC:9E:DE - btMACAddress
   28:56:2F:AC:9E:DF - ethernetMACAddress
   =======================
   Board ADC ID (mV): 2233
   =======================
   LittleFS Started
   Using profile #0
   PSRAM Size (bytes): 2097152
   I2C Devices:
   0x0B - BQ40Z50 Battery Pack Manager / Fuel gauge
   0x10 - Authentication Coprocessor
   0x21 - PCA9554 GPIO Expander with Interrupt (Facet FP)
   0x3C - SSD1306 OLED Driver (Facet FP)
   GPIO Expander for switches configuration complete
   Display started
   ================
   SparkPNT FP <Firmware Version>
   ================
   Profile 'Profile1' loaded
   GNSS <GNSS Receiver Model> online
   <GNSS Receiver Model> version: <Firmware Version> 2025/12/12 11:21:01
   Fuel gauge configuration complete
   No GNSS date/time available for system RTC.
   Authentication coprocessor online
   Bluetooth SPP and BLE broadcasting as: SparkPNT <FP Model>-<Serial Number>
   STATE_ROVER_NOT_STARTED --> STATE_ROVER_CONFIG_WAIT
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Rover configured
   STATE_ROVER_CONFIG_WAIT --> STATE_ROVER_NO_FIX
   Batt (89%): Voltage: 8.06V Discharging: 6.97%/hr
   LoRa radio configured for receiving
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Batt (89%): Voltage: 8.06V Discharging: 6.99%/hr
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix
   Batt (89%): Voltage: 8.06V Discharging: 6.99%/hr
   Rover Accuracy (m): 0.000, SIV: 0 GNSS State: No Fix

Update the LoRa Radio

To update the firmware for the STM32 LoRa module, users will need to install the STM32CubeProgrammer, download the LoRa firmware file, and reconfigure the FPX into the LoRa update mode.

1. The device should be operating in the LoRa update mode at 57600bps, and ready to be programmed.
   note

   Don't forget to close/disconnect the terminal used to configure the LoRa update mode. That UART port is used to program to the STM32 LoRa module.

2. Download the latest STM32 LoRa binary file from the SparkFun_RTK_Everywhere_Firmware_Binaries GitHub repository.
3. Download and install STM32CubeProgrammer.
   warning

   Users will need to create an account to download the software from the STMicroelectronics website.

4. Open STM32CubeProgrammer.



5. Select UART from the drop-down menu (blue box) as the programming interface and select the Port associated with Channel B of the CH342. Then, configure the following UART settings: Baudrate to 57600, Parity to None, along with the RTS and DTR to High.

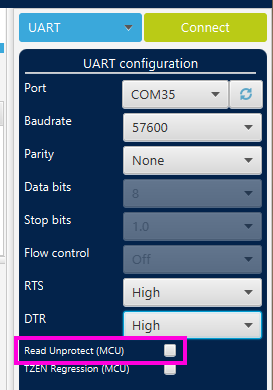

   Option - Read Unprotected

   Do not enable the Read Unprotected option. This setting writes to fuse bits and if there is a problem with serial communication, it can lead to an inoperable bootloader. The device can be repaired, but only at SparkPNT (we have to use an ST-Link to reprogram the fuse bits over the SWD interface).



6. Click the Connect button.

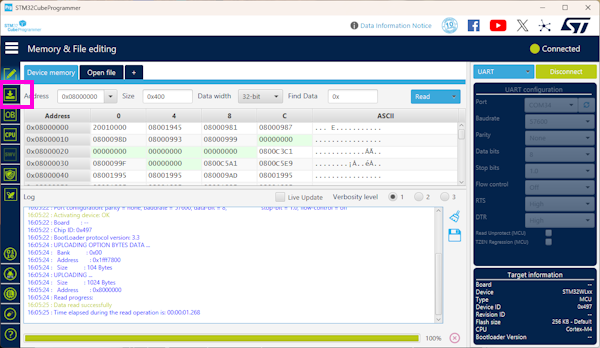

7. Once connected, select the Erasing & Programming menu from the left side-bar.



8. Click the Browse button to select the downloaded binary file. Then, click the Start Programming button to upload the firmware to the STM32 LoRa module.



9. After a few seconds, programming will complete and a dialog message will pop up.



10. Click the Disconnect button to close the COM port connection.



11. Press and release the () power button to exit the LoRa update mode and restart the device.

Update the ZED-X20P Firmware

To update the ZED-X20P GNSS receiver, users will need to install the u-center 2, download the GNSS firmware file, and reconfigure the FPX into the GNSS update mode. The following video describes how to update the firmware of the ZED-X20P with the u-center 2 software.

1. The device should be operating in the GNSS update mode at 230400bps, and ready to be programmed.
2. Download the latest ZED-X20P firmware file from the SparkFun_RTK_Everywhere_Firmware_Binaries GitHub repository.
3. Download and install u-center 2. u-center 2 is the software created by ublox to configure and view output from their GNSS modules.
   info

   For the latest instructions on updating the firmware using u-center 2, please refer to ublox's documentation.

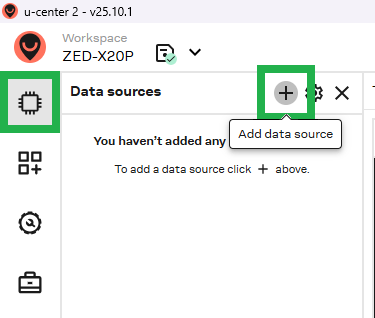

4. Open u-center 2 and connect to your device by, opening the () Add data source dialog in the () Data source panel.



   Open the Add data source dialog

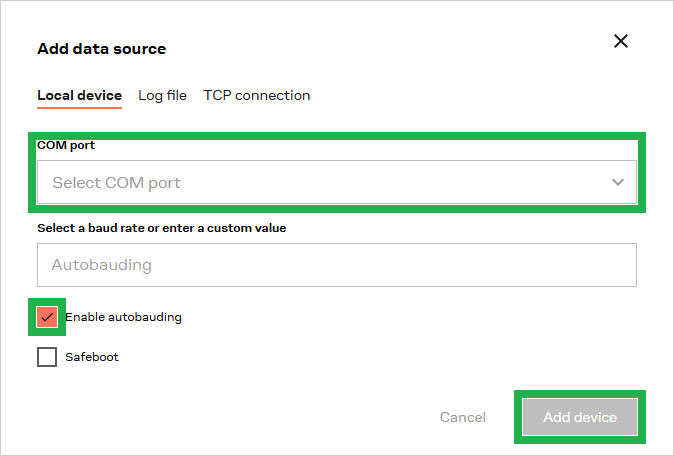

5. From the COM port drop-down menu, select Channel B of the CH342; then, select the Enable autobauding* option and click the Add device button to connect to the FPX.



   Select the COM port and autobauding option

   tip

   If the autobaud rate doesn't work, set the Baud rate to 230400.

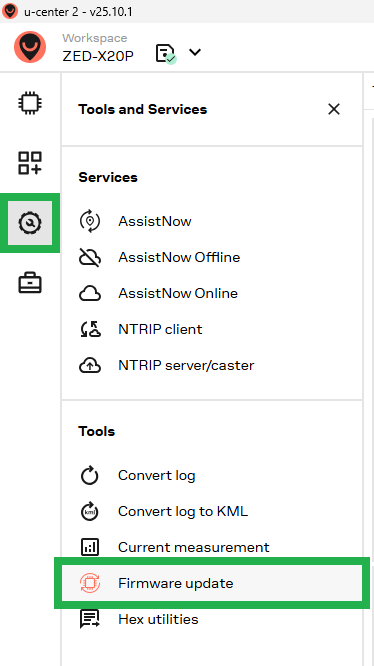

6. To upload firmware to the ZED-X20P, select () Firmware update dialog from the () () Tools and Services panel.



   Open the Firmware update dialog

7. Select the firmware file to upload, by clicking on the Select button. (This should be the *.bin file that was downloaded in Step 2.)



   Select the firmware file

8. Click on the Update button to begin the update process; this takes a few minutes.



   Start the Firmware Update Process

9. Once completed, close u-center 2.
10. Press and release the () power button to exit the GNSS update mode and restart the device.
