Product Comparison

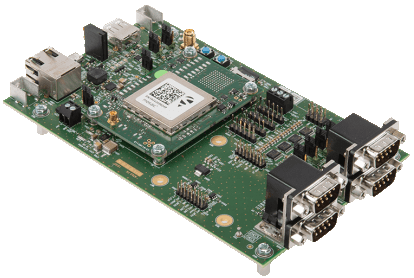

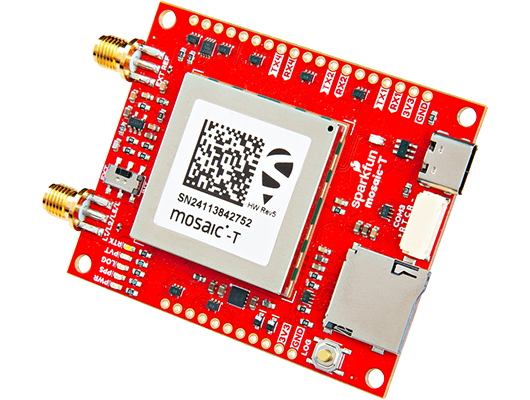

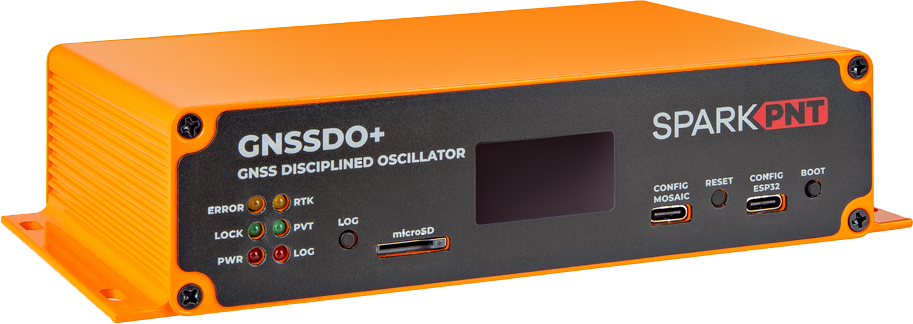

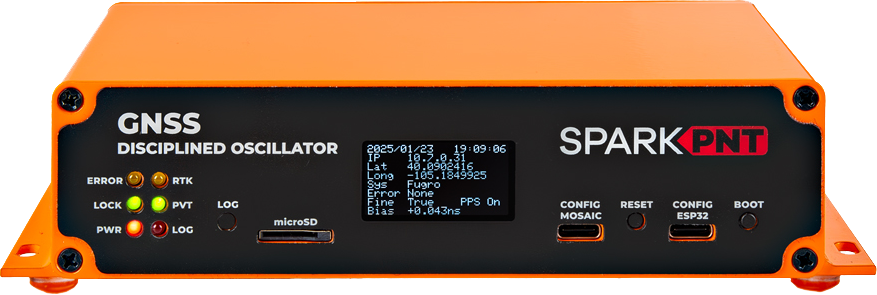

	mosaic-T Development Kit	mosaic-T GNSS Breakout	GNSSDO	GNSSDO+
RTK Rover	Yes	Yes	No	No
RTK Base	Yes	Yes	No	No
GNSS Antenna	Dual	Single	Single	Single
USB Connector	micro-B	Type-C	Type-C	Type-C
Ethernet	Yes 10/100 Base-T	No	Yes 10/100 Base-T	Yes 10/100 Base-T
WiFi	No	No	Yes - Network Bridge 10 Base-T	Yes - Network Bridge 10 Base-T
COM Ports	4	4	1 - mosaic-T 1 - ESP32	1 - mosaic-T 1 - ESP32
µSD Card Slot	Yes	Yes	Yes	Yes
Reset/Log Buttons	Yes	Yes	Yes	Yes
Logic-Level	1.8V 3.3V	3.3V	3.3V 5V	3.3V 5V
PPS Signal	Header Pin	PTH Pad	SMA Connector	SMA Connector
10MHz Signal	SMA Connector In Only	SMA Connector In/Out	SMA Connector In/Out	SMA Connector Out only
Enclosure Material	N/A	N/A	Aluminum	Aluminum
Dimensions	N/A	635 x 508 x 8mm	180.6 x 101.8 x 41mm Enclosure Only	180.6 x 101.8 x 41mm Enclosure Only
Weight	N/A	23g	415.15g Enclosure Only	415.15g Enclosure Only
